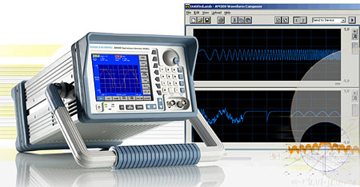

R&S AM 300 Dual Channel Arbitrary Function Generator

The R&S AM 300 integrates functions of an Arbitrary, Function and I/Q generator in one box. With its two channels it is ideal suited for complex test setups in R&D, education and production.

Highlights:

· Two channels with seperate adjustable frequency, shape and amplitude
· Adjustable phase deviation between the two channels with 0,01° resolution
· Harmonic distortion (sine 1MHz), typical -80 dBc (0,01%)

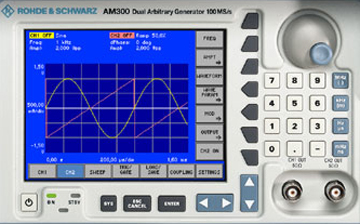

· Large color TFT Display for scaled waveform previews including zoom function
· Extremly stable reference frequency (1ppm/year)
· Low jitter clock signals up to 50 MHz
· USB interfaces
· Standard functions: sine, triangle, ramp, exponential, square, noise, pulse
· Frequency range: 35 MHz sine, 50 MHz rectangle
· Modulation: AM, FM, jM, Burst, FSK, PSK
· Broadband I/Q generator for digital modulations like WLAN, W-CDMA, etc.
· 14 Bit vertical resolution.

Applications:

With numerous different functions, that can easily be combined, various applications e.g. in Automotive, Telecommunications or Military can be covered. The instrument can operate as:
· Signal source with high accuracy and modulation up to 35 MHz
· Generator to simulate sensor signals including overlayed interfering signals
· Test of servo loops (e.g. AGC)
· Generation of two exactly synchronised signals
· Generation of I/Q baseband signals for digital modulation

With the grafical Interface of the optional PC-Software you can easily generate arbitrary Signals. The Software supports formats from MathCAD or MathLab as well as recorded Signals, e.g. from an Oscilloscope. Various signals can be concatinated and edited with a numerous number of functions like addition or multiplication. Waveforms can be stored on a USB memory stick and from there directly loaded into the R&S AM300.
